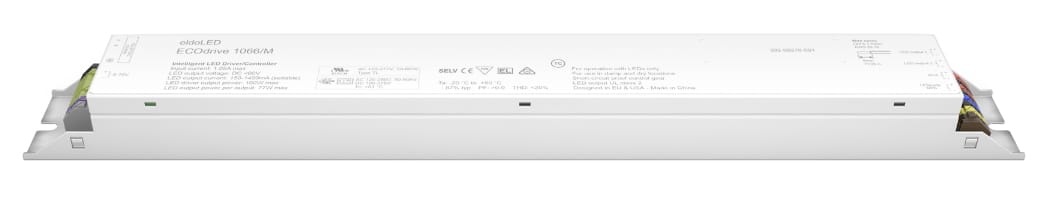

ECOdrive 1066/M

EC1066M : ECOdrive AC, 100W, 0-10V, aux, 1 control channel, constant current, 2x 55V outputs, long metal


Any further information, please contact us

ECOdrive 1066/M delivers 100W and is 0-10V compatible. Also, ECOdrive 1066/M has an auxiliary power output and smoothly dims down to 1%.

Features

  • Hybrid HydraDrive: provides the smoothest flicker-free high-performance dimming to 1% for every fixture
  • Auxiliary power output
  • LEDcode technology: configurable design to work with most constant current LED modules and arrays, while providing a connection point to integrated peripheral controls
  • NTC interface for robust thermal management

Benefits

  • Increase performance and capability of any LED fixture
  • Reduce inventory and decrease lead times with configurable drivers
  • Short lead times, designed to meet the most aggressive timelines
  • Trusted brand with proven track record of performance and reliability

Certifications

  • CE
  • EN 61347-1/-2-13, EN 62384, EN 55015, EN 55022, EN 61000-3-2, EN 61547
  • UL: Recognized Component (E333135), according to UL131 0 and UL8750. US/Canada: Isolated, Class 2 output.
  • ENEC by DEKRA
  • EL
  • RCM by SAA

Input characteristics
Nominal input voltage range AC 120 – 250V (ENEC), 120 – 277V (UL)
Absolute input voltage range AC 120 – 277V
Nominal input voltage range DC 120 – 250V
Maximum input current AC 0.99A @ 120V ; 0.43A @ 277V
Input frequency range 50 – 60Hz
Efficiency at full load 84%
Power factor at full load > 0.95
THD at full load < 10%
Maximum inrush current AC <500mA²s @ 120V ; <1000mA²s @ 277V
Surge protection 2kV differential mode (DM) ; 4kV common mode (CM)
Maximum standby power < 0.5W ; If no load connected to the AUX output

Output characteristics
Maximum LED output power 100W
Maximum LED output power per output 77W
Number of LED outputs 2 (UL Class 2)
Programmable LED output current range 150 – 1400mA
LED output type Programmable in 1mA increments within specified current range
LED output current tolerance +/- 5% at programmed LED output current
LED output voltage range 2 – 55V
Auxiliary output 15.5V – 25V DC, 18mA maximum

Control characteristics
Control channels 1
Control protocol 0-10V ; LEDcode
Dimming range 100% – 1%
Dimming curve options Logarithmic (default) ; Linear ; Soft-Linear ; Square
Dimming method Hybrid HydraDrive
0-10V current draw < 2mA
Time delay to standby < 30s

Dimensions 37 × 4,1 × 3 cm
