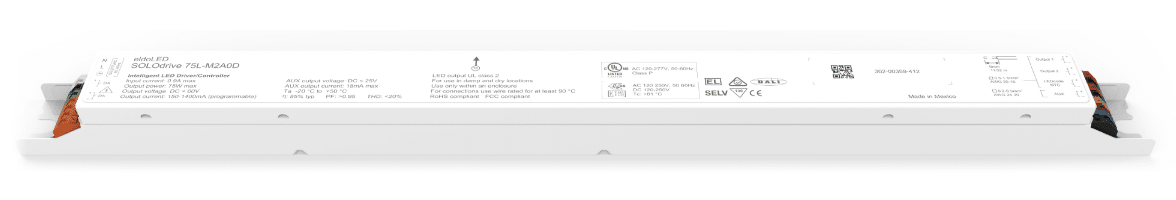

SOLOdrive 75L-M1M0D
SL75L-M1M0D : SOLOdrive 75W/L, single output + medium power AUX, DALI (UL Class P)
Any further information, please contact us
SOLOdrive 75L-M1M0D delivers 75W and is DALI-2 certified. As all SOLOdrives, the 75L-M1M0D smoothly dims all the way down to dark.
Features
- Hybrid HydraDrive: provides the smoothest flicker-free high-performance dimming to dark for every fixture
- Auxiliary power output
- LEDcode2 technology: connects to integrated digital accessories, supports location-based IoT applications and enables wired and wireless lighting control through LEDcode peripheral devices
- NTC interface for robust thermal management
Benefits
- Increase performance and capability of any LED fixture
- Reduce inventory and decrease lead times with configurable drivers
- Short lead times, designed to meet the most aggressive timelines
- Trusted brand with proven track record of performance and reliability
Certifications
- CE
- EN 61347-1/-2-13, EN 62384, EN 55015, EN 55022, EN 61000-3-2, EN 61547
- IEC 62386-101 Edition 2.0, IEC 62386-102 Edition 2.0, IEC 62386-207 Edition 1
- UL listed (E333135), according to UL 1310 and UL 8750. US/Canada: Isolated, Class 2 output. Class P LED driver.
- ENEC by DEKRA
- EL
Input characteristics
Nominal input voltage range AC 120 – 250V (ENEC), 120 – 277V (UL)
Absolute input voltage range AC 108 – 305V
Nominal input voltage range DC 120 – 250V
Maximum input current AC 0.8A @ 120V ; 0.4A @ 230V ; 0.35 A @ 277V
Input frequency range 50 – 60Hz
Efficiency at full load 85%
Power factor at full load > 0.95
THD at full load <20%
Maximum inrush current AC < 200mA²s @ 120V ; < 200mA²s @ 230V ; < 200mA²s @ 277V
Surge protection 2kV differential mode (DM) ; 2kV common mode (CM)
Maximum standby power 0.5W ; If no load connected to the AUX output
Output characteristics
Maximum LED output power 75W
Number of LED outputs 1 ; (UL Class 2)
Programmable LED output current range 700 – 2100mA
LED output type Programmable in 1mA increments within specified current range
LED output current tolerance +/- 5% at programmed LED output current
LED output voltage range 2 – 55V
Auxiliary output 4V – 24V DC, 100mA maximum
Auxiliary voltage settable? Yes
Auxiliary voltage resolution 1V (below 16V) ; 2V (above 16V)
Control characteristics
Control channels 1
Control protocol DALI-2 Device Type 6 ; LEDcode2
Dimming range 100% – 0.1%
Dimming curve options Logarithmic (default) ; Linear
Dimming method Hybrid HydraDrive
Time delay to standby <30s
| Dimensions | 42,4 × 3 × 2,7 cm |
|---|
