TPS 8

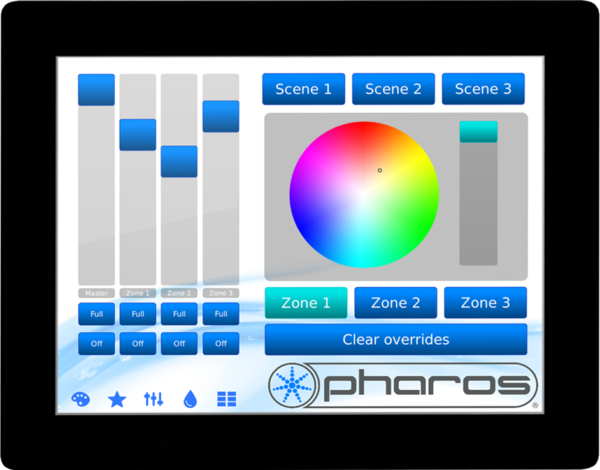

The Pharos Designer TPS 8 (Touch Panel Station 8) is a new, updated, elegant interface with a customisable, 8 capacitive touch screen, compatible with any Pharos Designer Controller.
The configuration software Pharos Designer 2 is vailable for both Windows and Mac, it’s free to download from Pharos’ website.
Any further information, please contact us
The new front panel is a seamless, uninterrupted glass plate available in Black and White (coming soon), giving a more elegant touch experience, and with improvements to its core functionality, touch performance, screen resolution, and vastly superior aesthetics. And, with a unique and innovative universal mounting solution, the TPS 5 will be easy to wall mount in your installation, regardless of region.
Main Features :
- Diagonal 8 inches (20.3cm)
- Customizable via Pharos Designer 2 software
- PoE (IEEE802.3af, Class 0) 10W
- 1280 x 768 24-bit resolution
- IP40
- Guaranteed 5 years
- Wall mountable, partially recessed in a UK 1&2 gang, EU 35mm or US 2.5″ back box (mounting plate included)
Capabilities
- Orientation : Portrait or landscape
- Layouts : Free editable layouts
- Pages : Any number of pages
- Navigation : Convenient and custom navigation via configurable navigation bars
- Fonts : Custom font support, including fonts with extended character sets e.g. Chinese, Korean, Japanese
- Themes : Wide selection of themes available to download, or create your own with Designer’s theme editor
- Controls : A wide array of customisable buttons, sliders, colour pickers, labels, keypads and clocks
- Flexible integration : Fully integrated with Pharos Trigger, so button states, graphics, and captions can change according to any number of preset triggers
- Secure access : Keypad for PIN-code entry; multiple user levels
- Commissioning : Commissioned with Pharos Designer 2
Specifications
- Certifications : CE compliant, UKCA compliant, UL/cUL listed
- Power : PoE (IEEE802.3af, Class 0) 10W typical
- Required : Any Pharos Designer Controller
- Data Storage : Removable MicroSD Card (supplied)
- Temperature : 0°C to 50°C (32°F to 122°F)
- Humidity : 10-95% relative, non-condensing
- Ingress : IP40
- Physical : Wall mounted, partly recessed in UK 1&2-gang, EU 35mm or US 2.5″ backbox (mounting plate included), 0.25 kg (0.6 lbs) (ex. mounting plate)
- Shipping : 32 x 24 x 4.5 cm (12.6″ x 9.4″ x 1.7″) ; 1.1 kg (2.5 lbs)
- Recovery : Hardware watchdog and recessed reset button
- Warranty : 5 years
Interfaces
- Ethernet : RJ45 socket for 10/100Base-TX Ethernet with Link/Data LEDs; Static IP or DHCP
- Touchscreen : 5” capacitive touch; 1280×768 24bpp; 500 cd/m2
